Light Gauge Steel Framing System

Characteristics

Material: GI
Type: Concealed ceiling suspension system/Partition system
Lightweight but high strength and good flexibility
Thermal stability and good weather resistance
No radiation, no hazardous, environmental friendly
Hot dip galvanizing process, high zinc coating, rust- proof and corrosion- resistant
Easy and fast to install, can be removed and reused without being damaged

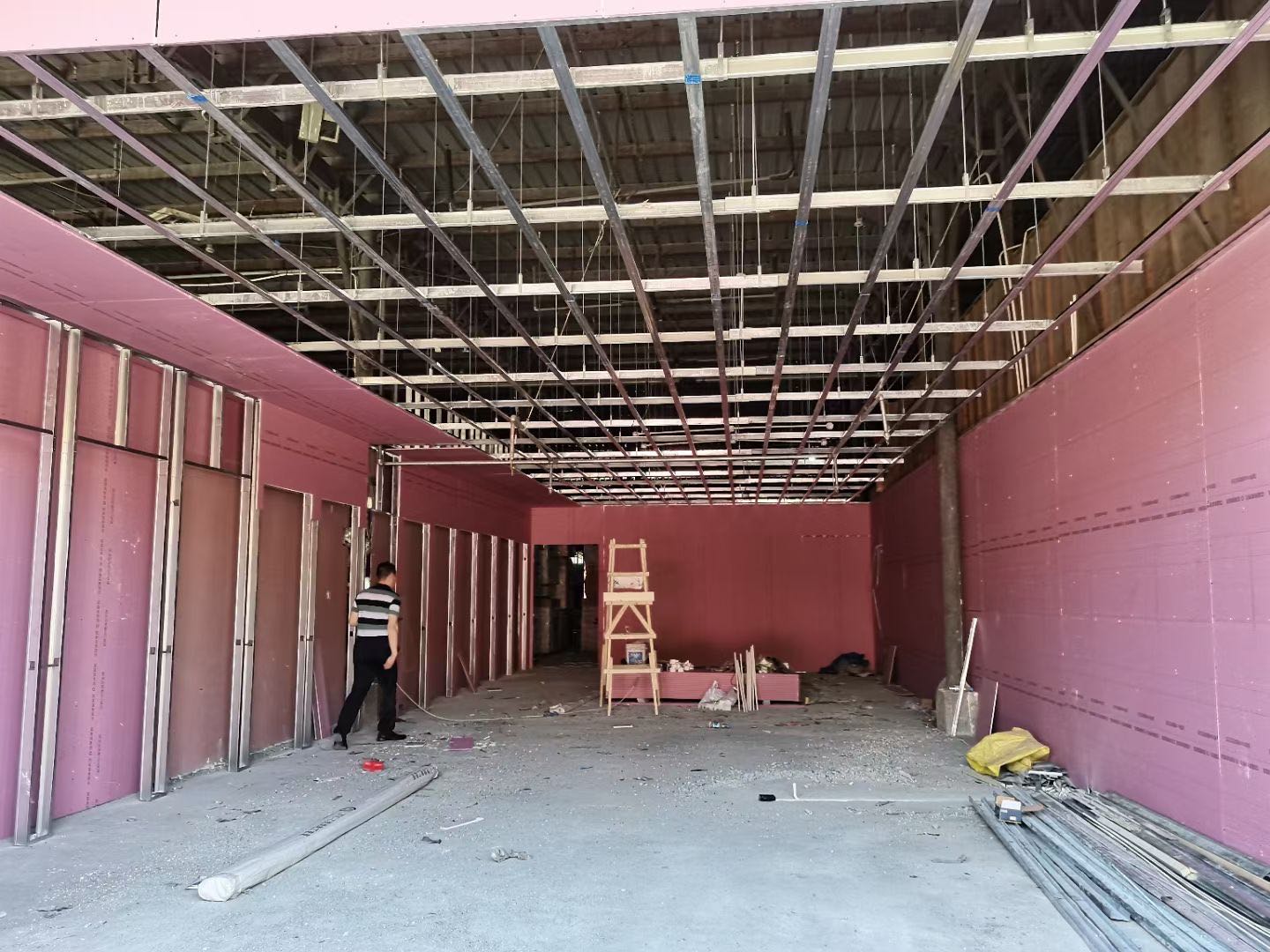

Widely used for ceiling suspension system and drywall partition system. Ordinary residences, plant/office buildings, hospitals, and everyday entertainment and recreation venues.

Item	Name	Width(mm) (A)		Height(mm) (B)	Thickness(mm)	Length(mm)
Concealed Ceiling Suspension System	Main Runner	38		10/12	0.5 – 1.0	3000 or customized
		50		10/15	0.7 – 1.2
		60		25/27	0.9/1.0
	Corss Runner	50		15	0.5 – 1.0
		50		19	0.7 – 1.2
		60		27	0.9/1.0
	Furring Channel	A 35	C 13	22	0.4/0.5

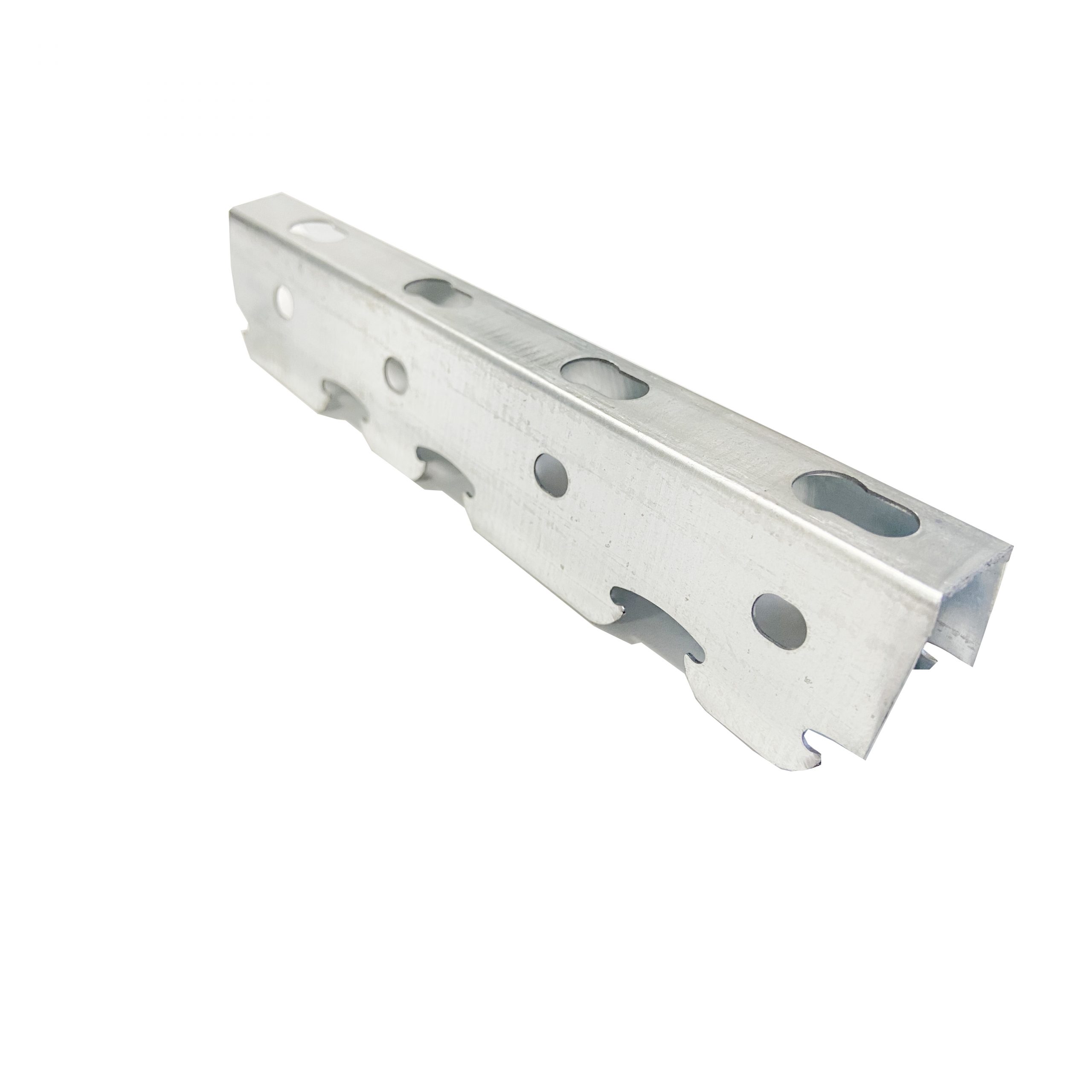

	Suspended Bar	20		25	0.5 – 1.0
				28
				32

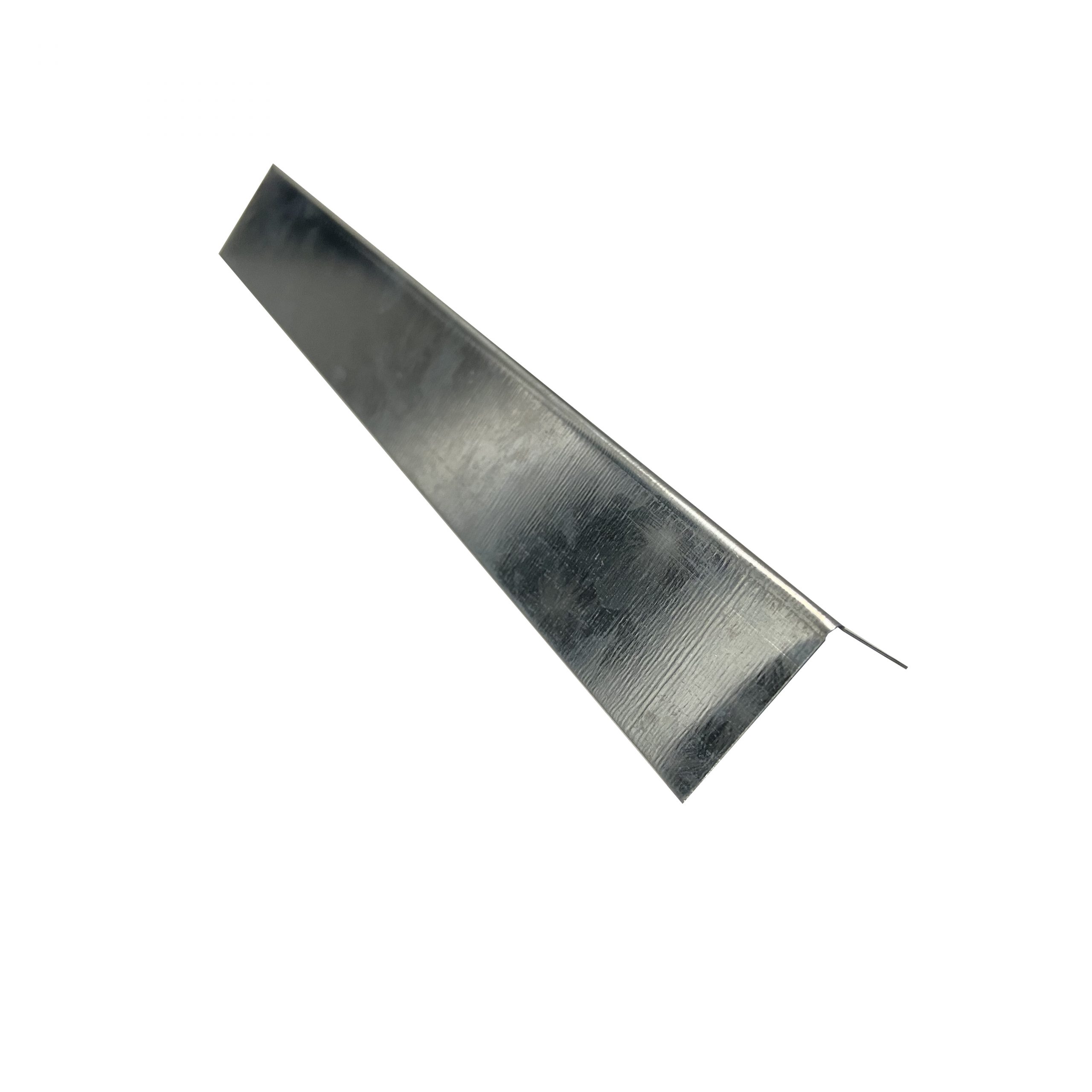

	Wall Angle	25		25	0.5 – 1.0
	Wall Angle	30		30	0.5 – 1.0
