Acoustic Clouds & Baffles Ceiling
Characteristics
- Material: Fiberglass wool or rock wool
- Face: Laminate with white or colorful decorative fiberglass tissue.
- Sound Absorption (NRC): 0.8 – 1.0
- Fire Performance: Class A1 (EN 13501)
- Flexural Tensile: Class 1
- Density: 100 – 150 kgs/m3
- No asbestos content
- Light weight, Sound Absorption, Heat Insulation, Environmental Protection, Fire Prevention, Moisture Proof
- Installation: Easy installation, installed with dedicated hanging accessories
- Humidity resistance: Dimensionally stable with RH over 95% at 40℃, no sagging, wrapping or delaminating
Color Option
- White/Black Smooth
- White Paint
- RAL Color
Application

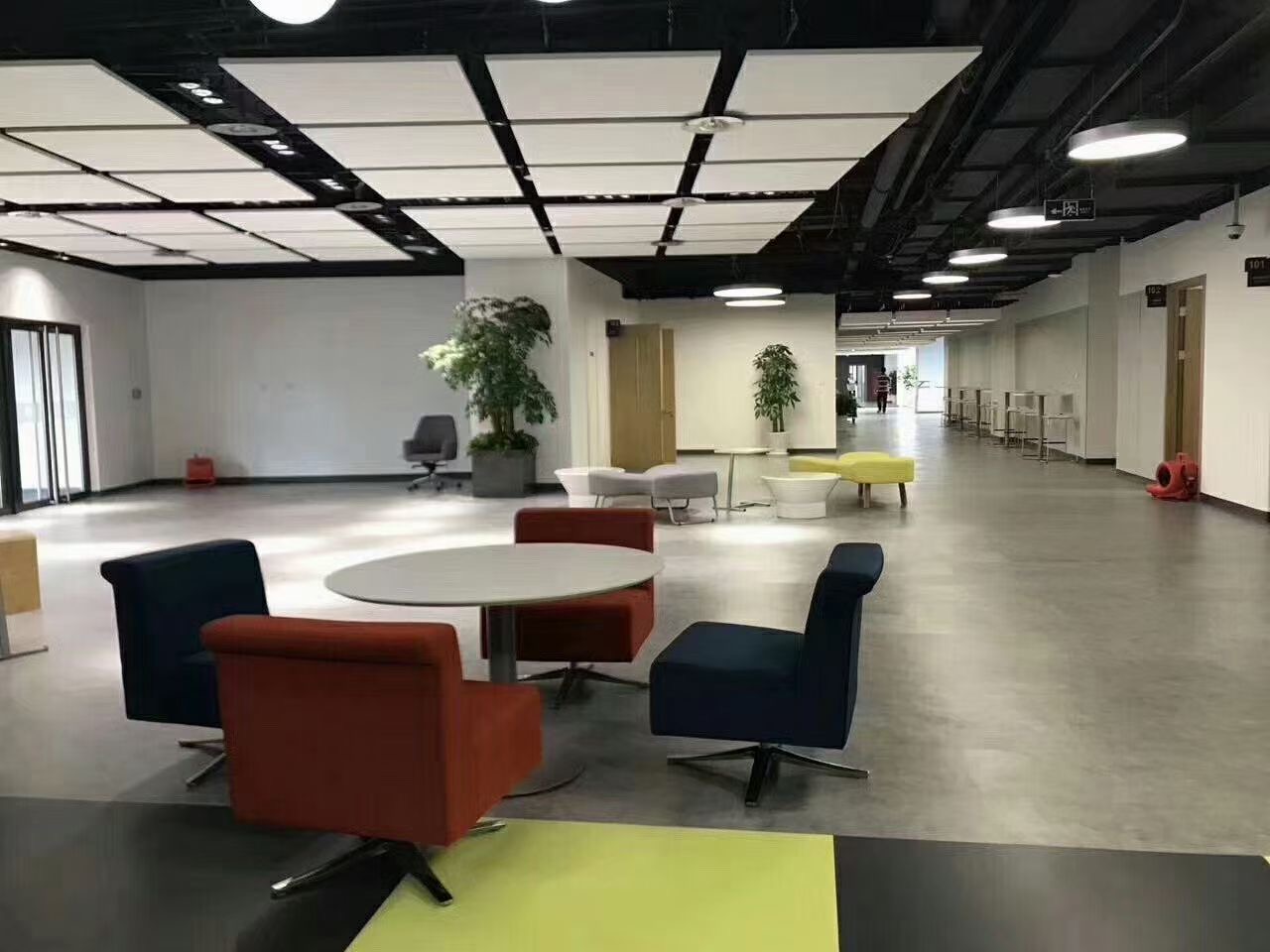

- Office buildings, shopping mall, gymnasium, exhibition hall, hotel and studio
Specification
| Item | Model | Profile | Size (mm) | Thickness (mm) |
|---|---|---|---|---|
| Acoustic Clouds Ceiling | Rectangle |  | 1170x1780 1170x2390 | 30 |
| Square |  | 1170x1170 | 30 | |

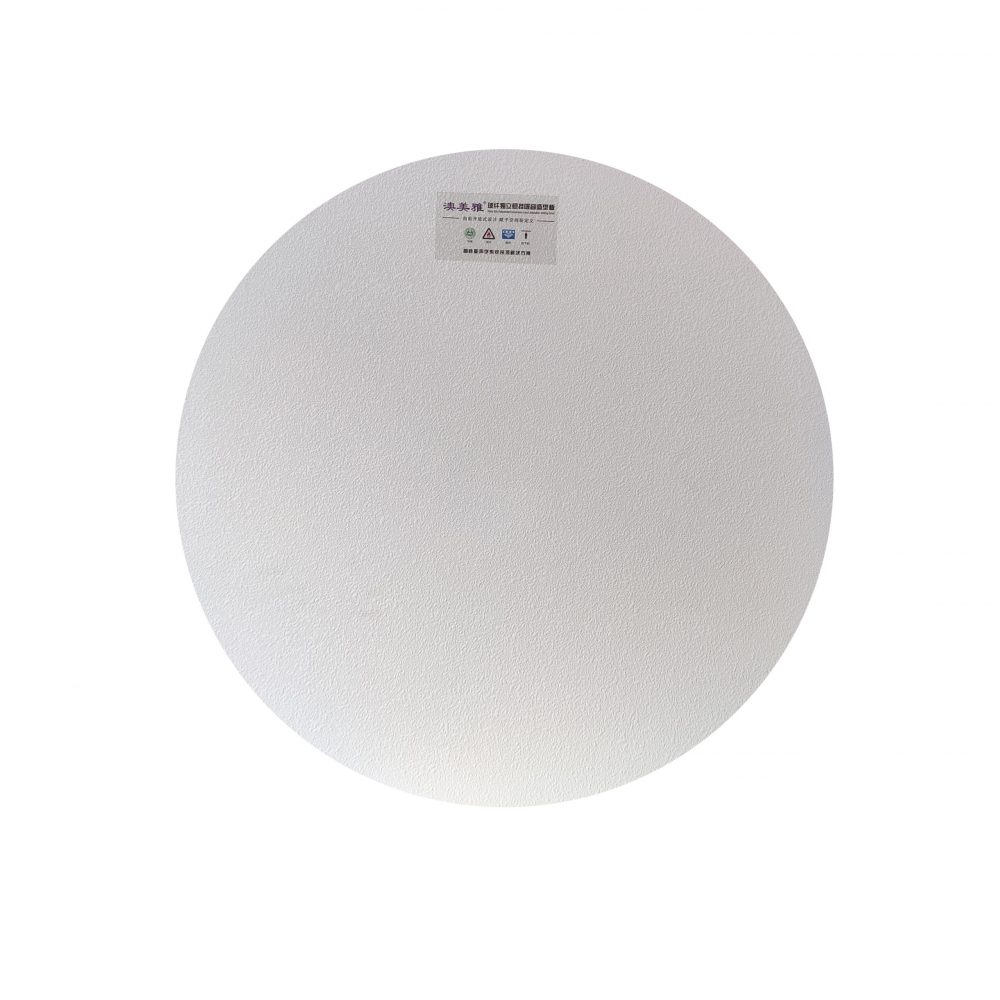

| Round |  | Φ1170 | 30 | |

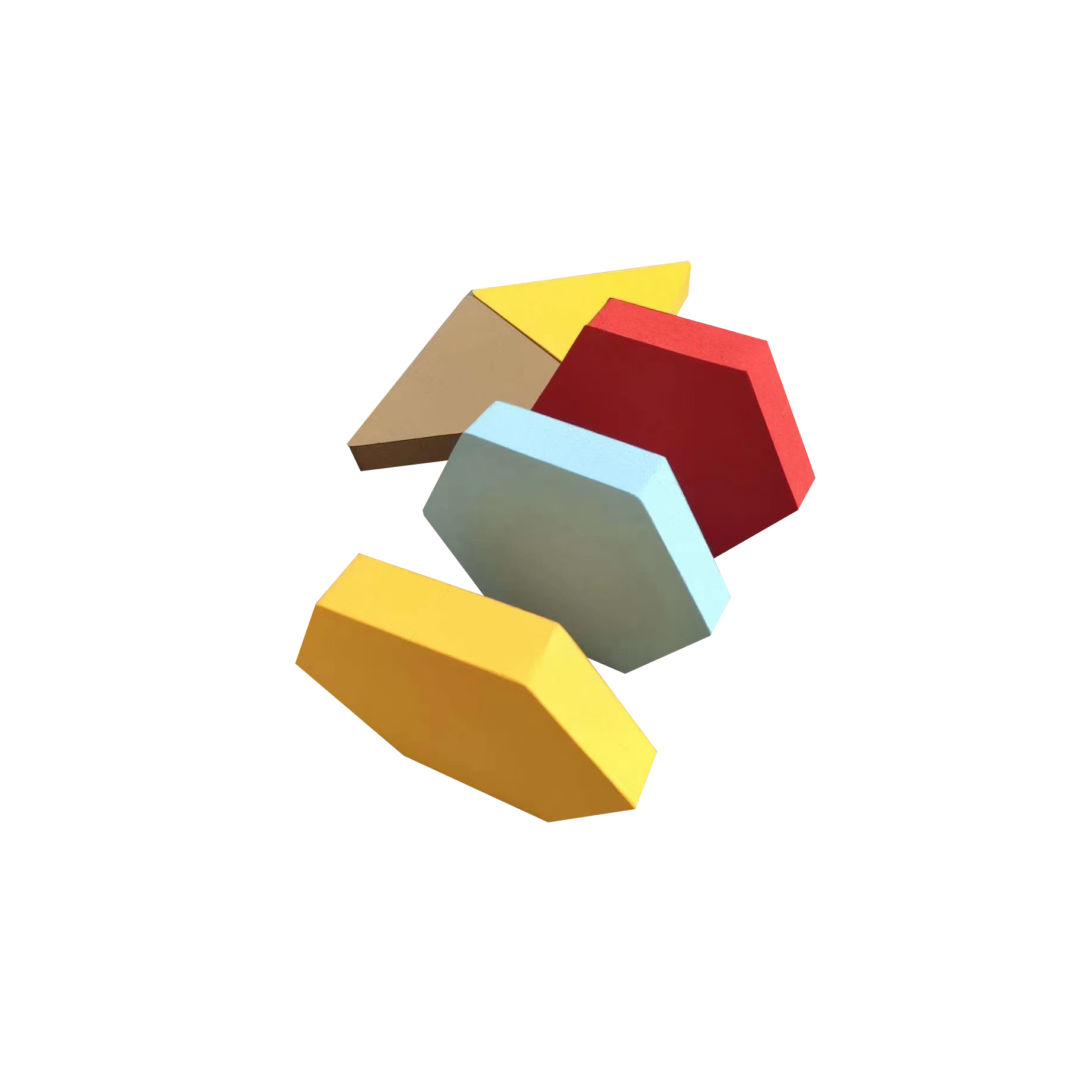

| Hexagon |  | 1010x1170 | 30 | |

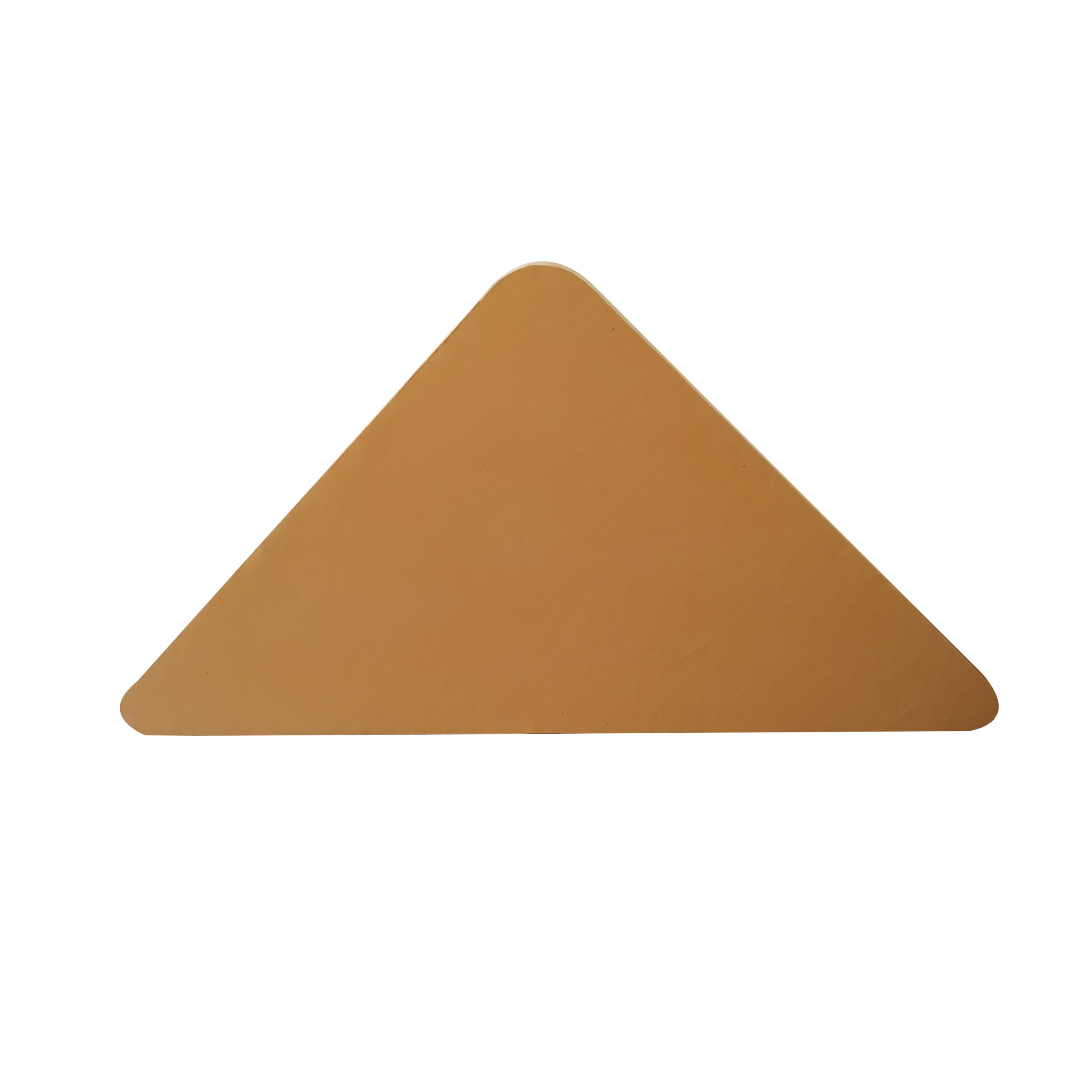

| Trapezoid |  | 1170x860x1170 | 30 | |
| Parallelogram |  | 1020x1170x1170 | 30 | |
| Convex |  | 1170x1170 | 30 | |
| Concave |  | 1040x1170 | 30 | |
| Acoustic Baffles Ceiling | Rectangle | | 200x1200, 200x1600 400x1200, 400x1600 400x1800 | 40 |
| Wavy |  | 400x1200, 400x1800 | 40 |
